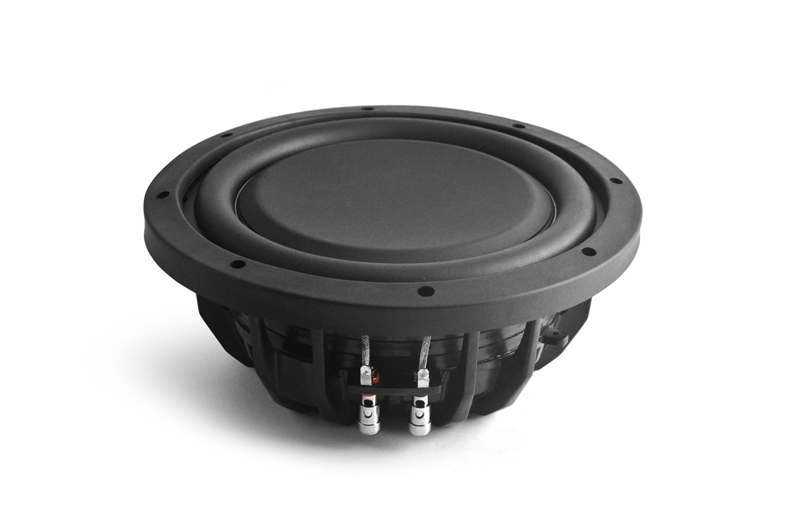

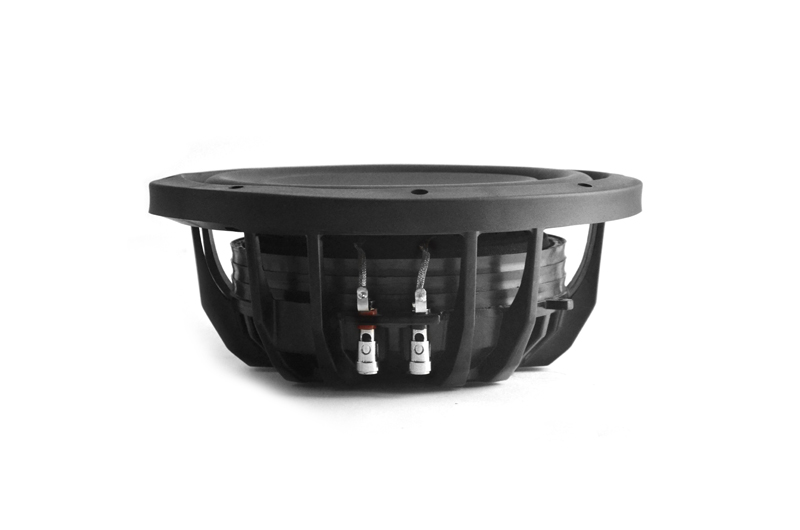

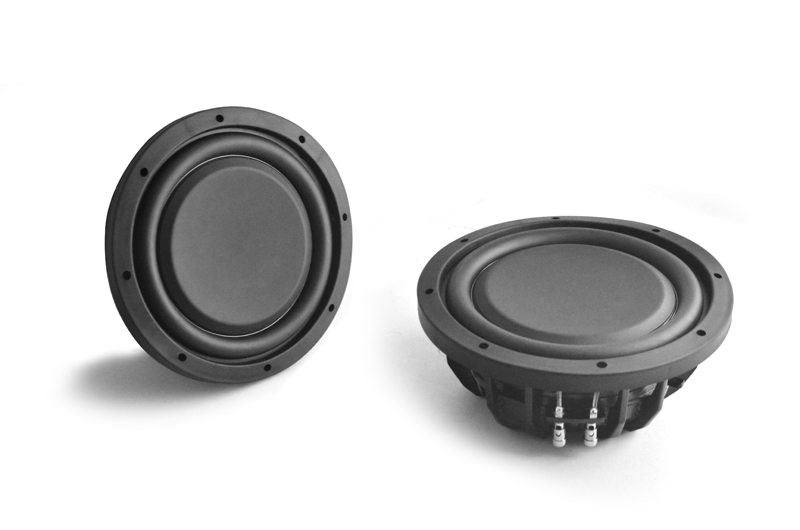

Saturn-U101SW-D2
One piece injection PP cone with rubber edge
shallow install height design
Rated Pink Noise Tested: 250 Watts
Peak Capacity Power Tested: 650 Watts
Resonance Frequency Fs 33.839 Hz
Equivalent Volume Vas 31.074 Ltr
Total Q Factor Qts 0.373 / 0.403
Frequency Response (-6db) Free Air Fo~400 Hz
Sensitivity (1W/1M) E 89.6±3 db
Voice Coil 2.1 inch Aluminum EI-Copper wire
Magnet 156mm+45mm Ferrite
Unique shallow install height design

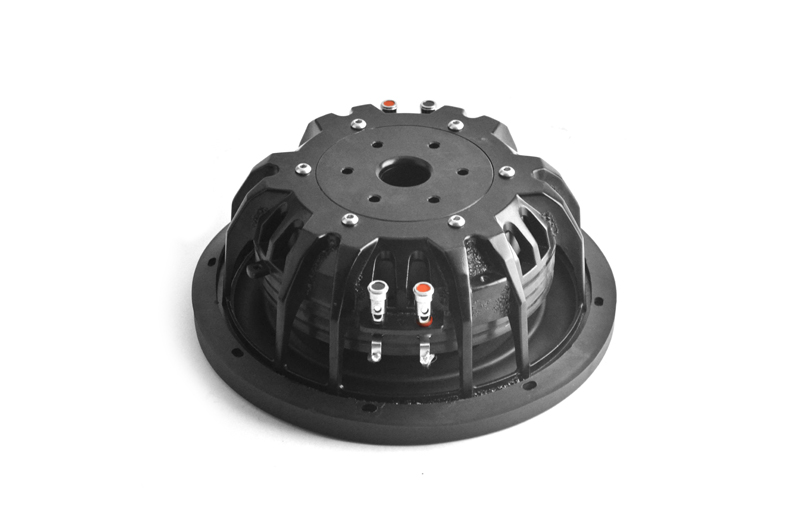

Vented cast aluminum chassis for optimum strength and low compressio
Low loss rubber edge for the moving parts with high linearity
Suit for Vented and Sealed Enclosure
